KSS0005S-OL-installation instructions

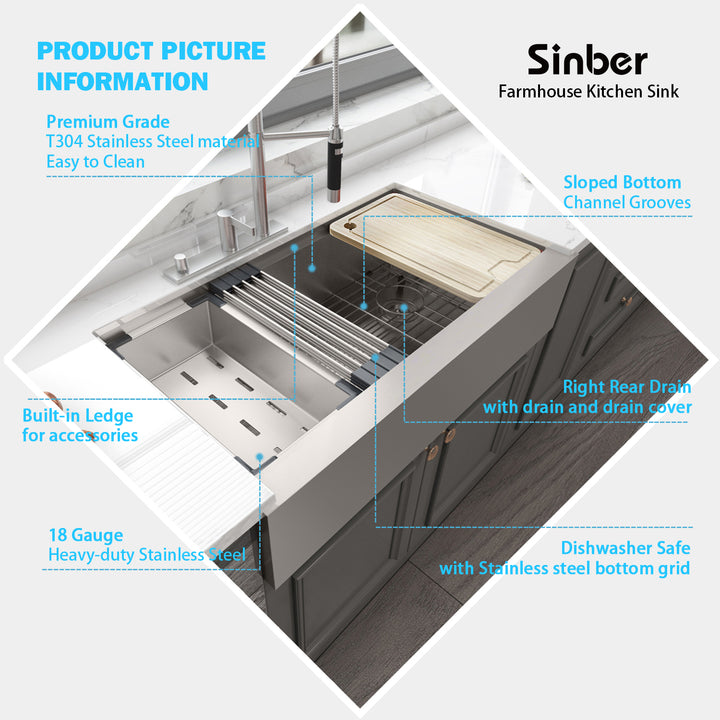

Specification:
- Color: Silver
- Dimension: 32.85" (Length) x 20.25" (Width) x 10" (Height)
- Design: Rectangle with flat bottom
- Sink Material: 304 Stainless Steel, 16 Gauge
- Installation Type: Apron/Farmhouse Sink Installation
-Net Weight: 25.24 lbs
-Drain Hole Size: 5"
-Package Including: Kitchen sink, filter basket, hardwood cutting board, rollup drying rack, basket strainer drain, and bottom stainless steel grate.
Sink Installation:
Step 1:
Remove the countertop, doors, and drawers of the cabinet, be careful to avoid any damages.
Step 2:
The sink comes with a template to cut out the front of the cabinet. Before cutting out the front, apply painter’s tape to the area that will be cut out.
Step 3:
Mark the center of the cabinet for the template. Tape the template and mark the template onto the cabinet.
Step 4:
Remove the template and cut the area you marked. Sand the area you just cut.
Step 5:
Add three support boards for each side, and install them on the sides. Make sure the supports are touching the floor, not the bottom of the cabinet.
Step 6:
Using the template to mark and cut the countertop.
Step 7
May need a second person to help to set the sink.
Step 6:
Install the countertop, then the installation is done.
